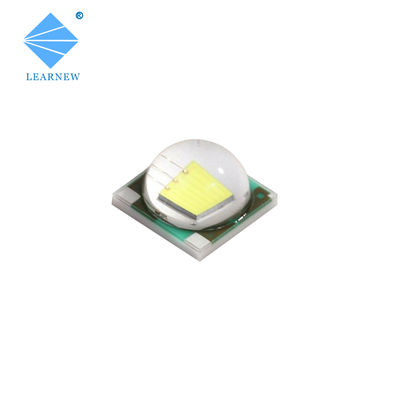

SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights

SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights
SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights

Ampliación de imagen :  SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights

Datos del producto:
Lugar de origen: Guangdong, China
Nombre de la marca: Learnew
Pago y Envío Términos:
Cantidad de orden mínima: 1000
Contacto

SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights

descripción
Material con chip: Ingan Eficacia luminosa: 120 lm/W
Temperatura del color: 3000K-10000K Corriente de reenvío: 1.5A-2A
Voltaje de entrada: 3.0-3.4V Esperanza de vida: 10000 horas
Temperatura de funcionamiento: -20 - 100 ℃ Fuerza: 5W-6W
Peso del producto: 0.03 kg Temperatura de almacenamiento: -20 - 80 ℃
Ángulo de visión: 30-120 ° Tamaño de chip: 3.5*3.5MM/5.0*5.0MM
Corriente máxima: 3000mA Material de sustrato: Cerámico
Atenuación óptica: 0.01%
Resaltar:

30°-120° Viewing Angle SMD3535 LED Chip

,

5W-6W High Power LED COB

,

3000K-5700K Color Temperature Vertical Chip LED

30° /90° /120° SMD3535 5W 6W Vertical Chip 3000K 5700K Ra>95 3-3.4V 1.5A-2A LED Diodes Chips High Brightness for Flash Lights
Product Description

We accept OEM and ODM service to customize any type of LED chip.

SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 0
Specification Details
POWER 10W
CCT WW=3000K PW=6000-7000K CW=8000-10000K
LUMINOUS EFF 1200-1500LM
SUBSTRATE Ceramic
APPLICATION 1. CAR LIGHT
2. HIGH-END COMMERCIAL LIGHT
3. CITY LIGHTING
4. STAGE LIGHTING
Current 3000mA
Whole Size 5.0*5.0MM
Voltage 3.0-3.4V
Circuit 1S1P
LES R2.45MM
Design Advantages
  • Ceramic leadframe
  • High ESD pass
  • Standard A Class chips
  • Cost performance
  • Gold wire bond
  • Easy reflow soldering
SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 1 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 2 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 3 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 4 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 5
Applications

Ideal for various lighting applications including automotive, commercial, urban, and stage lighting solutions.

Factory Introduction
SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 6 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 7 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 8 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 9 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 10 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 11 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 12 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 13
Product Packaging
SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 14 SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 15
Certifications
SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights 16
Frequently Asked Questions
Q1: Do you supply OEM, ODM service?
A1: Yes, absolutely it can be realized. We focus on OEM & ODM service for more than 7 years.
Q2: Are all the pictures real photos?
A2: Yes, the pictures of all products on this page are 100% real photos taken by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including product parameters, application, your contact information and quantity. Our professional team will reply within one hour.
Q4: Is there any discount for bulk orders?
A4: Yes, we offer wholesale prices for bulk orders and customized products. Follow us on Alibaba or add us to your favorite stores to receive discount and coupon information.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. Please provide the receiver's information when placing your order. Shipping costs are based on your order's volume and weight, which you can check on Alibaba or ask our team.
Q6: How to place an order?
A6: You can check shipping costs and discount information online and place orders directly on Alibaba, or contact us for order details.
Q7: What payment terms are available?
A7: We accept T/T, PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: Lead time depends on order quantity, typically 10-15 working days. Samples in standard specifications can be delivered in 3 days.
