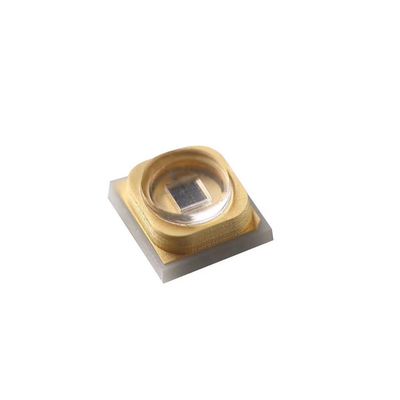

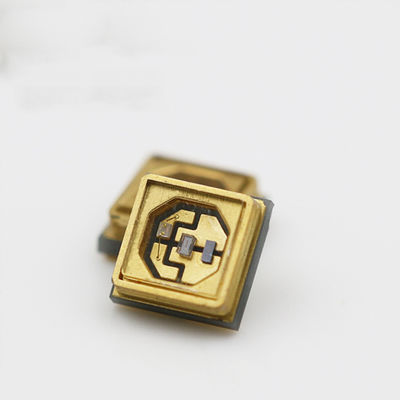

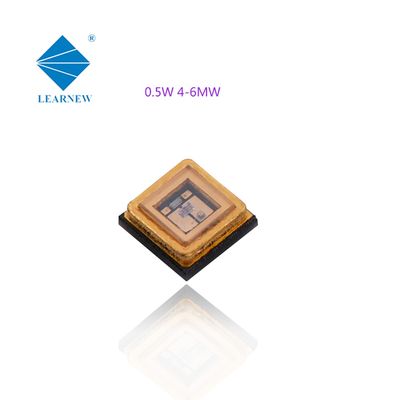

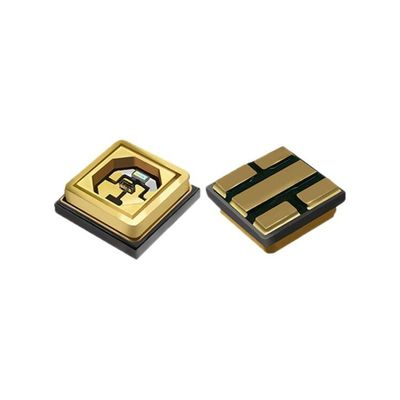

High Power Diode 254nm UV LEDs Chip UVC LED Streifen
We are committed to research and development, producing greener, energy-saving and high-quality products. We have professional laboratories and researchers, and have conducted rigorous testing to ensure scientific effectiveness. We provide free consulting services for all your business growth project needs.

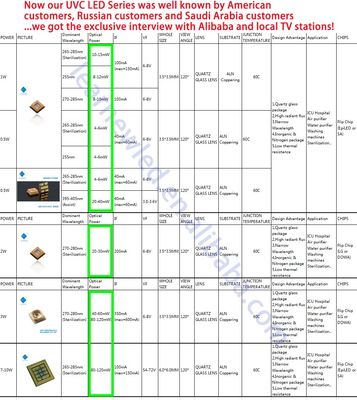

Product Specifications
| POWER DISSIPATION: |
0.5-1W |
| COLOR TEMPERATURE: |
250-285NM |
| IF: |
40mA-100mA (max=150mA) |
| INPUT VOLTAGE: |
5-7V |

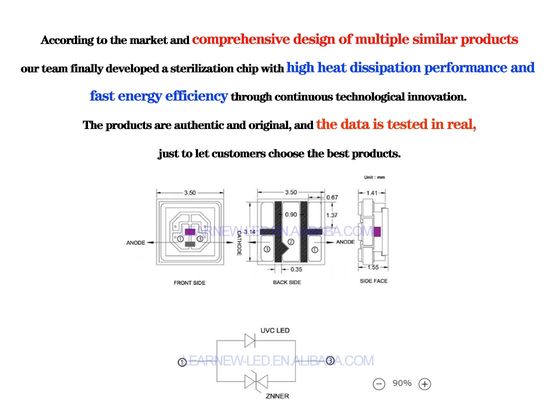

| WHOLE SIZE: |
3.5*3.5MM |
| LENS: |
QUARTZ GLASS LENS |
| VIEW ANGLE: |
120 |
| SUBSTATE: |
ALN COPPERING |
Design Advantages
- Quartz glass package
- High radiant flux
- Narrow Wavelength
- Inorganic & Nitrogen package
- Low thermal resistance
Applications
- ICU Hospital
- Air purifier
- Water purifier
- Washing machines
- Sterilization
Manufacturer: LEARNEW OPTO
UVC LED Disinfection Technology
What is the "sterilizing range" of UV?
The ultraviolet spectrum important for water and air disinfection is the range absorbed by DNA (200-300nm). While 254nm was traditionally used, our testing shows that 265nm, 275nm and 280nm UVC LEDs provide optimal disinfection as they match the peak of the DNA absorption curve.
How is the bactericidal effect determined?
UVC LED power intensity, wavelength and irradiation duration determine bactericidal effect. For any given wavelength, the power and exposure time must be calculated to achieve the desired disinfection level.
What is the difference between a UVC LED and a mercury lamp?
UVC LEDs are smaller, more powerful, non-toxic, have longer lifespans, and are more energy efficient than mercury lamps. They allow instant optical output and can be tailored to specific wavelength requirements, unlike mercury lamps which emit a fixed spectrum.
Which products do UVC LEDs generally apply to?
Our 265nm-285nm UVC LEDs are used in ICU hospitals, air purifiers, water purifiers, washing machines, UVC boxes, and UV light sterilizers.
