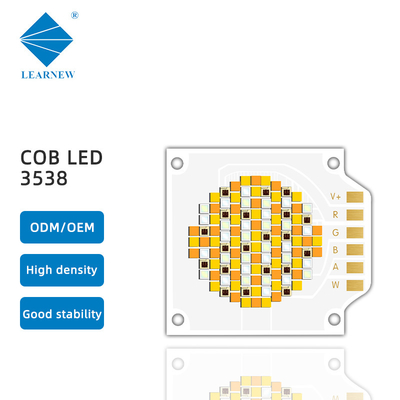

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Certificación
CHINA Shenzhen Learnew Optoelectronics Technology Co., Ltd. certificaciones
CHINA Shenzhen Learnew Optoelectronics Technology Co., Ltd. certificaciones
Comentarios de cliente
El 25 de agosto de 2023, compré chips UVA LED de Learnew. Learnew entregó los chips UVA personalizados que solicitamos rápidamente y con excelente mano de obra. Fue un placer trabajar con Learnew.Él fue capaz de decirme exactamente qué producto funcionaría con mi impresora de curadoMe ahorran mucho tiempo, son muy profesionales.

—— Ashraf Trading

El 13 de octubre de 2023, recibí un chip LED 3535 COB personalizado. Su atención al detalle, respuestas oportunas y entrega a tiempo han superado mis expectativas. La muestra que recibí es lo que necesito,muy brillante, voy a elegir LEARNEW por mucho tiempo en el futuro

—— Hector Bustillo

Marzo de 2024,Acabo de recibir el producto y lo he probado,El diseño de estos chips LED de altura es excepcional.Son compactos, fáciles de instalar y proporcionan una excelente iluminación.Estoy muy satisfecho con su desempeño.!

—— ¿ Qué es esto?

Estoy completamente impresionado con la funcionalidad de estos chips UV LED. Ofrecen una salida UV fiable, alta eficiencia y una larga vida útil. Una gran inversión para cualquier aplicación UV!

—— Ali Muhammad

Estoy en línea para chatear ahora

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments
Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments
Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Ampliación de imagen :  Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Datos del producto:
Lugar de origen: China.
Nombre de la marca: LEARNEW
Certificación: CE
Número de modelo: 3538 SERIAS
Pago y Envío Términos:
Cantidad de orden mínima: 2000-10000pcs.
Precio: negotiable
Detalles de empaquetado: Paquete a prueba de polvo y electrostático
Tiempo de entrega: 1-7 días laborables para las muestras, 1-4 semanas para la cantidad de pedido
Condiciones de pago: Los datos de las operaciones de transferencia de dinero a través de los servicios de transferencia d
Capacidad de la fuente: 500,000PCS por mes

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

descripción
Nombre: CHIP LED COB El poder: 250w
Si: 2A*5 VF: 24-26V
En todo su tamaño: de una anchura igual o superior a 35 mm Servir: Hecho a medida
Resaltar:

3538 COB LED Chip

,

250W-350W COB LED Chip

,

Five Color COB LED Chip

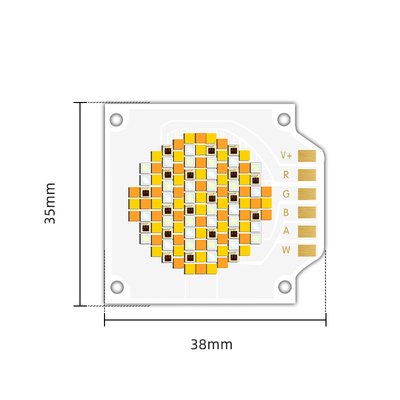

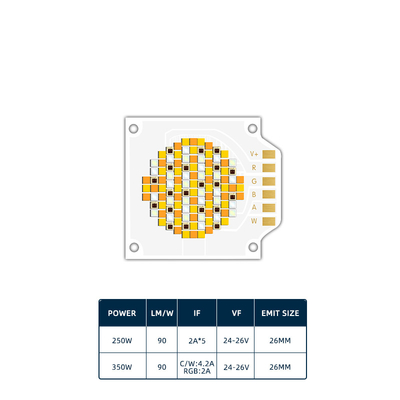

Model POWER CCT LM/W IF VF WHOLE SIZE EMIT SIZE VIEW ANGLE CRI SUBSTRATE
3538 SERIES 250W/350W Five colors COB 620nm/460nm/520nm/2700K /6500K 90 2A*5 24-26V 35X38MM 26MM 120° 95 Boss thermal and electrical separation copper substrate + aluminum nitride structure

COB (Chip on Board) LED is an LED packaging technology that directly connects LED chips to the PCB substrate instead of using traditional LED packaging. The advantages of five-color COB LEDs mainly include:

  • High brightness: COB LEDs integrate multiple LED chips on the same substrate, so they can provide higher brightness output.
  • Uniform light distribution: Since multiple LED chips are on the same substrate, COB LEDs can provide more uniform light distribution and reduce the light spot problem caused by multiple light sources.
  • Compact design: COB LEDs are more compact than traditional LED packages and are suitable for some applications with limited space.
  • Thermal management: COB LEDs integrate multiple LED chips on the PCB substrate, which helps to improve heat dissipation and extend the service life of LED lamps.
  • High color reproduction: Due to the combination of multiple LED chips, COB LEDs can provide a wider range of color temperature and color options with better color reproduction.

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 0Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 1

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 2

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 3



Five color COB Chip FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.

Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET
plastic containers and bottles in all shapes.
